C.Thiim Voltage Relays

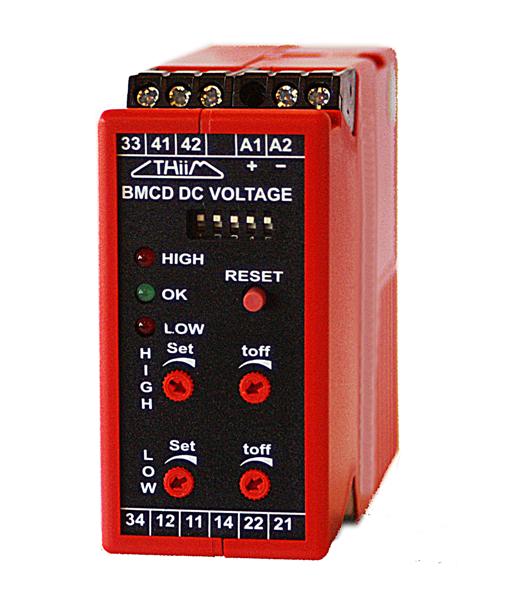

BMCD SERIES

C.THiim Battery Monitoring Relays

Supply from the battery

Programmable voltage 12VDC, 24VDC, 48VDC & 110VDC

LEDs indicate the state of the input

Programmable OFF delay 0-10 sec or 0-100 sec

Programmable Latch for over voltage

BMWB SERIES

C.THiim DC Voltage Monitoring Relays

Combined over and/or under voltage relay

Monitor wide range of 14V to 340VDC

Include two relays for use in parallel or for individual under and over voltage signalisation

Easy dipswitch setting selects function as under and over voltage relay, window relay or under or over voltage relay only

LEDs indicate the state of the input

LEDs indicates the state of the relay

LEDs indicate when the timing function is active

UAWA SERIES

C.THiim Mains Voltage Monitoring Relays

Separate Adjustment for upper and lower limit

Separate dipswitch setting for upper and lower limit function

LEDs indicate the state of the input

LEDs indicates the state of the relay

LEDs indicate the timing function

Time delay separate adjustable

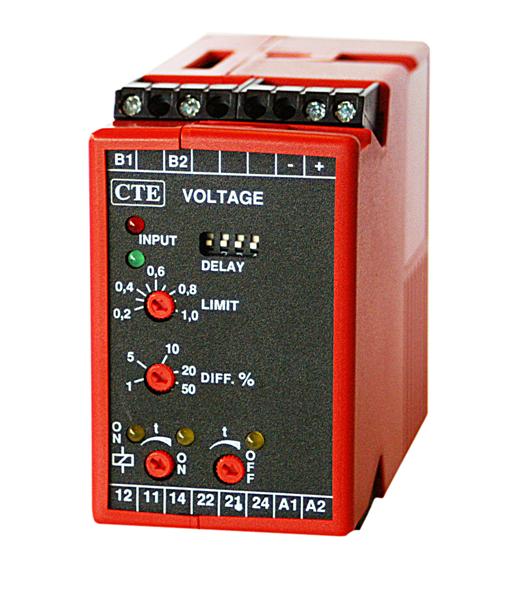

UMCA SERIES

C.THiim Multifunction Voltage Monitoring Relays

For AC and DC Voltage

Balanced input for noise immunity

Input voltage range from 50mV to 500V

11 programmable input ranges

4 programmable times for power up reset

4 programmable time ranges

Separate adjustable ON and OFF delay

Relay Function can be inverted

Adjustable upper or lower limit and differential

Latch function available

LEDs indicate the state of the input

LEDs indicate the timing function

LED indicates the state of the relay

SMD – technic

0-1V DC Control Output for full scale (Only in 45mm. housing)
